In the field of mechanical manufacturing, forged shafts, as crucial transmission components, have a direct impact on the performance and lifespan of mechanical equipment. The machining of the outer surface of forged shafts is a core part of the production process. In this article, we will focus on forged shafts and provide a detailed introduction to the machining methods for their outer surfaces, including turning, grinding, and finishing processes, and discuss their characteristics, applicable scenarios. Moreover, we will also talk about how to select the appropriate machining methods to meet the precision requirements of different forged parts.
Forged shafts typically have high strength and toughness. Their blanks are formed through the forging process, and the surfaces may have scale and shape errors. Therefore, the machining of forged shafts requires special attention to removing these defects while ensuring the precision and surface quality of the machined product.
Surface Scale: During the forging process, a layer of scale forms on the surface of the shaft. This scale not only affects the precision of subsequent machining but can also lead to increased tool wear. Therefore, it is necessary to remove the scale by turning before machining.
Shape Errors and Positional Deviations: Forged shaft blanks may have certain shape errors and positional deviations, which can affect the uniformity and precision of subsequent machining. Rough turning and semi-finishing turning can gradually correct these errors to ensure uniform machining allowances.
Precision Requirements: The outer surface of forged shafts usually needs to achieve high machining precision to ensure their reliability and stability in the transmission system.
Surface Quality: Surface roughness directly affects the wear resistance and fatigue strength of the shaft. Therefore, it is essential to strictly control surface roughness during machining to meet design requirements.

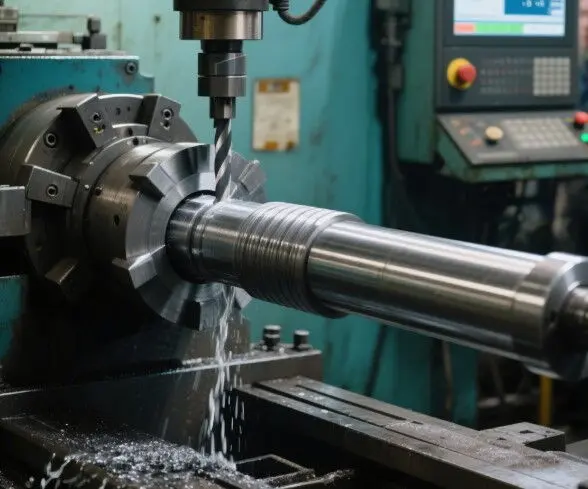

Turning is one of the main methods for machining the outer surface of forged shafts and is suitable for rough machining, semi-finishing, and finishing. Turning has the advantages of low equipment cost and flexible operation, but its machining precision is relatively lower. The following are the specific forms and applications of turning.
Purpose: To remove the surface scale and most of the excess material from the forged shaft, reduce shape errors and positional deviations, and ensure uniform machining allowances for subsequent processes.
Cutting Parameters: Generally, the cutting allowance on one side is 1 - 3mm. Within the allowable stiffness of the machining system, a larger cutting depth should be selected to improve production efficiency.
Tool Selection: Typically, hard metal tools are used with a larger primary rake angle (45° - 90°) and a cutting edge radius of less than 0.1 - 1.0mm.
Purpose: As the final machining step for medium-precision surfaces or as a pre-treatment step for grinding and other processes. For high-precision blanks, semi-finishing turning can be performed directly without rough turning.
Cutting Parameters: The cutting depth is relatively small to ensure the precision and quality of the machined surface.
Tool Selection: High-precision hard metal tools are used, with the primary rake angle and cutting edge radius selected based on specific requirements.
Purpose: Suitable for machining high-precision and fine roughness surfaces, especially for the outer surfaces of non-ferrous metal parts. Since non-ferrous metals are not suitable for grinding, finishing turning can be used as an alternative to grinding.
Cutting Parameters: The cutting depth is extremely small, usually between 0.1 - 0.5mm, to ensure high precision and low surface roughness.
Tool Selection: Diamond or hard metal tools are typically used, with a larger primary rake angle (45° - 90°) and a cutting edge radius of less than 0.1 - 1.0mm.
Applicable Scenarios: Suitable for the machining of the outer surfaces of forged shafts in various batch sizes, especially for single-piece and small-batch production. Horizontal lathes are commonly used for single-piece and small-batch turning operations.
Advantages: Low equipment cost, flexible operation, and suitable for machining various materials.
Applicable Scenarios: Suitable for single-piece, small-batch, and medium-batch production, especially for parts with complex structures and high machining precision requirements. CNC turning is increasingly used in modern mechanical machining.
Advantages:
High Flexibility: Short equipment adjustment and preparation time when changing parts.
High Machining Efficiency: Improved efficiency through optimized cutting parameters and adaptive control.
Good Machining Quality: Fewer special fixtures and lower production preparation costs.
Low Operational Skill Requirements: Not affected by the operator's skills, vision, mental state, or physical strength.
Grinding is the main finishing method for the outer surface of forged shafts and is particularly suitable for the precision machining of high-hardness and quenched parts. Grinding can achieve high machining precision and low surface roughness and is widely used in the machining of precision mechanical parts.
Grinding Tool Characteristics: The grinding tools (or abrasives) used in grinding have the characteristics of small particles, high hardness, and good heat resistance, enabling the machining of hard metals and non-metals, such as quenched steel, hard metal tools, ceramics, etc.
These characteristics of grinding tools allow for the production of extremely thin and fine chips, resulting in high machining precision and low surface roughness values.
Machining Precision and Surface Quality: As a precision machining method, grinding can achieve much higher precision and surface roughness than other machining methods like turning. The range of grinding includes rough grinding, finishing grinding, and mirror grinding.
High-Hardness Materials: For forged shafts that have undergone quenching, grinding is the ideal finishing method. The surface hardness of the quenched shaft is high, and ordinary turning cannot achieve the required precision and surface quality, while grinding can easily handle it.
Precision Machining: Grinding is suitable for parts that require high precision and low surface roughness. By optimizing grinding parameters and selecting appropriate grinding tools, the machining precision and surface quality can be further improved.
High-Efficiency Grinding: The development of high-efficiency grinding technology allows blanks to be ground directly to the required size and precision, thereby improving production efficiency. This technology is especially suitable for mass production and can significantly reduce machining time.
Finishing is a super-precision machining method performed after precision machining, such as rolling, polishing, and grinding. These methods are suitable for parts with extremely high precision and surface quality requirements and can further improve the machining precision and surface quality of the parts.
High Precision and Low Roughness: Finishing can further improve the machining precision and surface quality of parts to higher standards. For example, rolling can improve surface roughness, polishing can make the surface smoother, and grinding can further increase machining precision.
Scope of Application: Finishing is suitable for various parts that require extremely high precision and surface quality, such as aerospace parts and precision instrument parts. These parts usually need to operate in extreme environments and have very high requirements for precision and surface quality.
Purpose: To apply pressure to the machined surface with a rolling tool, causing plastic deformation of the surface layer, thereby reducing surface roughness and increasing surface hardness and wear resistance.
Applicable Scenarios: Suitable for forged shafts that require high surface hardness and wear resistance, such as automotive drive shafts and machine tool spindles.
Purpose: To finely grind the machined surface with a polishing tool to make the surface smoother and further reduce surface roughness.
Applicable Scenarios: Suitable for parts with extremely high surface quality requirements, such as precision instrument shafts and aerospace parts.
Purpose: To achieve a mirror finish on the machined surface through high-precision grinding processes, further improving machining precision and surface quality.
Applicable Scenarios: Suitable for parts that require extremely high precision and surface quality, such as precision mold shafts and optical instrument shafts.
Selecting the appropriate machining method is crucial to ensuring the machining quality of forged shafts. Different machining methods vary in economic machining precision, surface roughness, productivity, and production cost. Therefore, the most suitable machining method should be chosen based on the specific requirements of the part and the production conditions.
Part Precision Requirements: If the part has high precision requirements, precision machining methods such as grinding or finishing should be selected. If the precision requirements are relatively low, turning may be a more economical choice.
Material Characteristics: For high-hardness and quenched materials, grinding is the preferred method. For non-ferrous metals that are not suitable for grinding, finishing turning can be used as an alternative.
Production Batch Size: For single-piece and small-batch production, conventional turning or CNC turning may be appropriate. For batch and mass production, automatic, semi-automatic lathes, and special-purpose lathes can improve production efficiency.
Production Cost: Turning is the most economical machining method, but its precision is relatively lower. Grinding and finishing, although high in precision, are also costly. Therefore, a balance needs to be struck between precision and cost.
When selecting a machining method, it is necessary to consider various factors and make a scientific and rational decision. For example, for high-precision, mass-produced forged shafts, CNC turning can be used for rough and semi-finishing machining, followed by grinding for finishing, and finally rolling or polishing to further improve surface quality. Through this combined machining method, production costs can be reduced while ensuring machining quality and improving production efficiency.
The machining of the outer surface of forged shafts is an important part of mechanical manufacturing. By understanding the characteristics and applicable scenarios of different machining methods such as turning, grinding, and finishing, the most suitable machining method can be selected based on the specific requirements of the part. Reasonable selection of machining methods not only improves the machining quality of parts but also reduces production costs and increases production efficiency. In actual production, it is necessary to consider various factors comprehensively and make scientific and rational decisions to produce qualified forged shafts that meet the requirements of the part drawings.
