From the massive booms of port machinery to the towering towers of offshore wind turbines, from the core components of nuclear power plants to the precision parts of aerospace applications, large ring components are ubiquitous. These parts bear the brunt of extreme challenges such as immense pressure, impact, friction, high temperatures, corrosion, and radiation. To ensure long-term stable operation and prevent failures and damage, they must possess exceptional properties, including high strength, toughness, wear resistance, and corrosion resistance. The forging process is the key to endowing these components with such robust performance. This article delves into the entire manufacturing process of large forged ring components, offering an in-depth exploration of this complex and sophisticated technical field.
Material preparation marks the starting point of manufacturing large forged ring components, much like laying the foundation for a skyscraper. Its accuracy and quality directly affect the success of subsequent processing and the final product's performance. In this stage, the selection of raw materials is critical, with a variety of options available, each with distinct characteristics to meet different production needs.
Continuous Casting Round Billets: Highly favored for their dense and uniform microstructure, these billets are ideal for manufacturing high-precision large ring forgings. Their internal structural uniformity ensures consistent performance in complex working conditions.
Square Billets: With larger cross-sectional dimensions, square billets meet stringent size requirements for large equipment, providing sufficient material for forging large ring components while ensuring dimensional accuracy and stability.
Round Ingots: Known for their high purity and excellent forgeability, round ingots are commonly used to produce high-quality ring forgings. Their low impurity content facilitates better plastic deformation during forging, enhancing the final product's performance.
Round Bars and Large-Radius Square Steel: These materials are widely used due to their versatility and cost-effectiveness. They meet basic performance requirements while keeping production costs under control, making them a preferred choice for many manufacturers.
Upon arrival at the factory, raw materials must undergo rigorous quality inspection—a stringent screening process where only compliant materials proceed to subsequent processing. Inspectors employ various testing methods to comprehensively evaluate material quality, including:
Visual Inspection: Checks for surface defects such as cracks, inclusions, or porosity to ensure material integrity.
Dimensional Measurement: Verifies whether material dimensions meet design specifications to prevent processing issues caused by deviations.
Chemical Composition Analysis: Ensures the material's chemical makeup meets specific performance requirements, such as strength and toughness.
Metallographic Examination: Assesses the uniformity and rationality of the material's microstructure, which directly influences its deformability during forging and the final product's performance.
Only materials that pass these stringent tests qualify for further processing, laying a solid foundation for producing high-quality large forged ring components.
Material processing involves shaping raw materials into blanks suitable for forging. The chosen processing method significantly impacts production efficiency, cost, and final product quality. Common methods include sawing, electrical discharge machining (EDM), gas cutting, and stretch-and-press cutting, each with its own advantages, disadvantages, and applications.
Sawing is a widely used, efficient material processing method, divided into band sawing and circular sawing.
Band Sawing: Offers surgical precision, delivering smooth and accurate cuts, making it ideal for applications demanding high cutting quality. It minimizes material waste, improves utilization, and ensures blank dimensional accuracy, providing a strong foundation for subsequent forging.
Circular Sawing: Faster and more efficient, circular sawing is well-suited for mass production. When cutting precision is less critical, this method significantly boosts productivity and reduces costs, optimizing the overall production process for forged ring components.
EDM is a high-precision cutting method that uses high-temperature sparks to melt and remove material, enabling intricate or high-accuracy cuts for complex-shaped ring components. It is particularly suitable for materials difficult to machine with traditional methods, such as high-strength alloy steels, ensuring cutting precision and surface quality for high-quality forging blanks.
Gas cutting employs a high-temperature flame generated by oxygen and fuel gas, offering speed and cost-efficiency. It is suitable for applications where cutting precision is secondary to cost and production efficiency. However, it may produce oxide scales, requiring post-processing cleaning to maintain the quality of forged ring components.
For polygonal ingots, stretch-and-press cutting is an efficient processing method. The ingot is first stretched and then cut using a press, maximizing material utilization and minimizing waste. This method is particularly effective for large ingots, reducing production costs and enhancing the economic viability of forged ring components.
In practice, the choice of material processing method depends on quality requirements, cost, and production efficiency. For high-quality components, sawing may be preferred, while gas cutting is more suitable for cost-sensitive applications.
Large ring components are typically forged within a hot-forging temperature range, as elevated temperatures enhance metal plasticity and reduce hardness, facilitating deformation. Pre-forging heating is thus a critical step, with the chosen heating method directly impacting efficiency, quality, cost, and environmental effects.
Traditional Coal Heating: Low-cost and widely available, but suffers from slow heating, imprecise temperature control, and severe environmental pollution. Its usage has declined with advancing technology and stricter environmental regulations.
Gas (Natural Gas) Heating: Cleaner and more efficient, gas heating offers faster temperature rise, better control, and lower emissions. In regions with abundant and affordable fuel, it provides cost advantages, making it a preferred choice for modern large-scale production.
Oil Heating: Fast and stable, but poses safety risks in fuel storage and transportation while emitting harmful pollutants. Its use requires careful consideration in forging ring component production.
Electric Heating: The cleanest and most precise method, converting electricity into heat with rapid heating, high temperature control accuracy, and zero emissions. It is ideal for environmentally sensitive regions and high-quality forging applications.
Common heating equipment includes rotary hearth furnaces, box furnaces, and car-bottom furnaces, each suited for different scenarios.
Rotary Hearth Furnace: Ensures uniform heating and high efficiency, ideal for mass production. It can process multiple blanks simultaneously, improving productivity and ensuring even heating for large ring components.
Box Furnace: Simple to operate, suitable for small batches or lower-quality production. Its straightforward design makes it easy to maintain, catering to small-scale manufacturers.
Car-Bottom Furnace: Allows large blanks to be moved in and out via a trolley, making it ideal for oversized workpieces and ensuring flexibility in handling large ring components.
In practice, the choice of heating method and equipment depends on efficiency, quality, fuel availability, cost, and environmental impact. For instance, electric or gas heating may be preferred in eco-conscious regions, while gas heating offers cost advantages in fuel-rich areas.
Blank forming transforms solid blanks into ring-shaped preforms for rolling. Though this stage has relatively lower precision and quality requirements, it involves smaller forming forces and simpler equipment, making it widely applicable across enterprises of varying scales.
The primary method is open-die forging combined with punching, akin to using a giant punch to create a hole in the blank, forming a ring preform. Though simple, this method meets most large ring component production needs.
Common blank forming equipment includes open-die hammers, hydraulic presses, and multi-station hydraulic presses.
Open-Die Hammer: A traditional method using impact force for plastic deformation. While simple, it offers lower precision and efficiency, making it suitable for small batches or less demanding applications.
Hydraulic Press: Provides stable, high-precision forming via fluid pressure, suitable for various ring sizes. It ensures uniform deformation, making it ideal for ring blank forming.
Multi-Station Hydraulic Press: Advanced technology enables simultaneous multi-step processing, significantly improving quality and efficiency. Computer-controlled pressure, speed, and stroke ensure precise, automated production, reducing manual intervention and enhancing overall product quality.

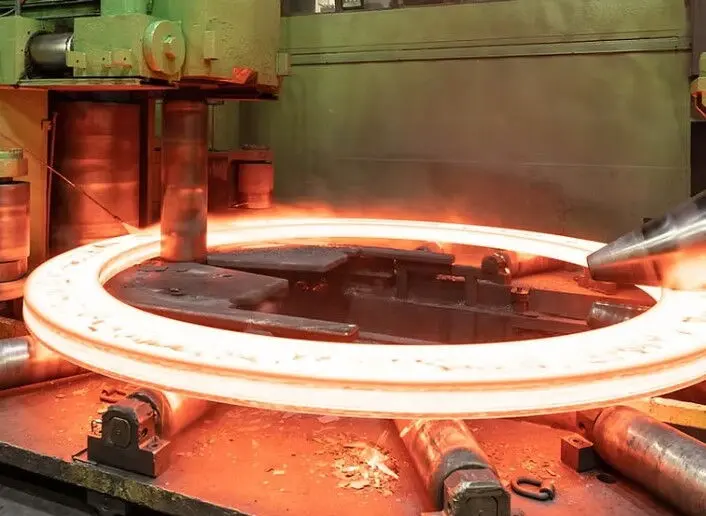

Final shaping of large rings typically employs radial-axial rolling, performed on specialized rolling mills. This process resembles a precise dance, requiring coordinated movement between components to ensure dimensional accuracy and shape consistency.
A robotic arm places the heated ring blank onto a mandrel, which can extract upward (for smaller, lighter blanks) or downward (for larger, heavier ones). Operators control the rolling process based on target dimensions and rolling curves, adjusting feed rates and rotational speeds to achieve precise shaping.
Most domestic ring rolling mills use manual or semi-automatic control, relying on skilled operators to adjust parameters in real-time for stability. Operators monitor ring dimensions, surface quality, and rolling force, making corrections as needed (e.g., adjusting feed speed for dimensional deviations or checking lubrication if rolling force increases). The process concludes once target dimensions are achieved.
Heat treatment modifies material properties to meet product requirements, enhancing strength, hardness, and toughness by altering microstructure. Common methods include normalizing, quenching, and tempering.
Heating the ring to a specific temperature followed by air cooling refines grain structure, improves microstructure, and enhances machinability. For example, low-carbon steel is normalized at 850–950°C with air cooling.
Heating above the critical temperature and rapid cooling increases hardness and strength but reduces toughness. High-carbon steel is quenched at 800°C to 850°C with oil or water cooling.
Conducted post-quenching, tempering involves heating to a lower temperature and cooling to reduce brittleness while improving toughness and stability. Precise control of temperature, soaking time, and cooling rate optimizes performance. Heat treatment typically occurs in electric furnaces with precise temperature control, using air, oil, or water cooling to achieve desired properties.
Post-heat treatment, rings are machined to final dimensions on vertical lathes. Operators adjust axial and radial positions using micrometers, calipers, and dial indicators to ensure precision before cutting.
Before delivery, machined rings undergo rigorous inspection per customer requirements, covering dimensions, surface hardness, appearance, and defects. Coordinate measuring machines, hardness testers, and flaw detectors are used. For mechanical or microstructural testing, samples are taken from the ring edge, with some products undergoing full cross-section inspection to ensure internal quality and safety.
The manufacturing of large forged ring components is a complex and intricate process involving material preparation, heating, forming, heat treatment, and machining. Each step is critical, directly impacting the final product's performance and quality. Through precise process control and stringent quality inspections, these components reliably endure extreme conditions, providing robust support for industrial manufacturing.
