In modern industrial production, flanges are particularly critical; they act like the joints of piping systems, connecting different pipes. Whether in the petroleum, chemical, machinery, or construction industries, flanges are indispensable. Flange forging technology is the core process for manufacturing high-quality flanges, and it is both complex and important. Today, we will take an in-depth look at flange forging technology to understand exactly how this precise manufacturing process works.

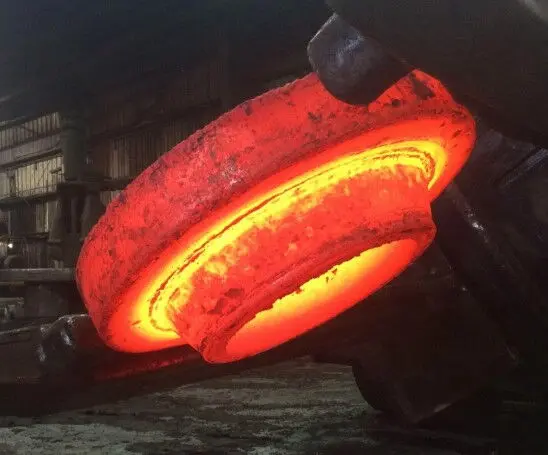

Simply put, flange forging is the process of shaping metal materials into flanges through a series of specific process steps. This is not something that can be done casually; strict control over materials is required, along with precise control of production temperature, forging techniques, and a multitude of other factors. The entire forging process generally includes material preparation, heating, forming, forging, and post-forging cooling.
According to different production requirements and technical characteristics, forging technology is mainly divided into open-die forging, closed-die forging, and rim-blow forging. Among these, open-die forging is one of the most important techniques. Mastering it allows the production of most flanges.
The advantages of open-die forging include high production efficiency and large processing allowance, making it especially suitable for simple-shaped flanges in small batches. Open-die forging equipment mainly includes pneumatic hammers, steam hammers, and hydraulic presses, suitable for producing small, medium, and large forged parts, respectively. In comparison, closed-die forging provides higher dimensional accuracy, smaller processing allowance, and more reasonable fiber structure distribution, which further enhances the service life of the components.
The basic process of open-die forging includes multiple key steps, each of which has an important impact on the quality of the final product.
Upsetting: Upsetting is an important step in open-die forging. It reduces the height of the blank and increases the cross-sectional area by forging it along the axial direction. This process is particularly suitable for forging gear blanks and similar components. Depending on the degree of forging, upsetting can be classified as full upsetting or partial forging. Full upsetting means forging the blank entirely into the required shape, while partial forging involves processing only part of the blank. Although the upsetting process is relatively rough, for some components without fine precision requirements, the parts forged through this process can be used directly.
Drawing Out: Drawing out is another key forging process. During drawing out, the length of the raw material increases while the cross-section decreases. This process requires precise control of the drawing speed and temperature to ensure uniform deformation and to prevent cracks or other defects.
Extrusion: Extrusion is a forging process in which a punch is either pulled through a through-hole or does not pass through the raw material. This process is mainly used to form specific holes or shapes, requiring precise control of the punch movement and material flow to ensure that the dimensions and shapes of the holes meet design requirements.
Bending: Bending is a forging process in which the material is bent to a certain angle or shape. During forging, part of the material rotates a certain angle relative to other parts. This process requires precise control of the bending angle and force to ensure that the bent material shape is accurate.
Cutting: Cutting is the forging process used to divide the steel blank or cut off waste ends. This process requires precise control of the cutting position and force to ensure that the cut blank dimensions meet the requirements for subsequent processing.
Closed-die forging differs significantly from open-die forging. In closed-die forging, heated raw materials are forged using dies fixed on forging equipment. The basic process of closed-die forging includes punching, heating, precision forging, pre-forging, trimming, and other steps.
The advantages of closed-die forging include high dimensional accuracy, small processing allowance, and reasonable fiber structure distribution. These features give forged flanges higher mechanical performance and longer service life. In addition, closed-die forging allows complex flange shapes to be produced through precise control of die shape and size, meeting the needs of different industrial scenarios.
Compared with cast flanges, forged flanges have many advantages. First, forged flanges generally have lower carbon content, are less prone to rust, and have better material flow and denser microstructure, giving them superior mechanical performance over cast flanges. Second, forged flanges can withstand higher shear and tensile forces, making them particularly suitable for high-pressure and high-temperature conditions.
However, the forging process also presents challenges. If the forging process is improper, issues such as coarse or uneven grains, hardening cracks, and other defects may occur. In addition, the cost of forging is usually higher than that of cast flanges, requiring greater equipment investment and energy consumption. To overcome these challenges, modern forging technology continuously introduces new processes and equipment, such as isothermal forging. This technology significantly improves the plasticity of metal materials by reducing flow resistance, allowing blanks to fill die cavities more easily and improving the dimensional accuracy and mechanical performance of forged parts.
The production process of forged flanges has strict material requirements, which ensure the quality during manufacturing and the performance of the final product. Specifically, material requirements include:
Chemical Composition: Chromium content in forged flanges should be controlled between 0.1% and 0.5% (sometimes chromium-free in special cases), while carbon content should remain below 1.0%. These limits ensure proper hardenability and mechanical performance.
Hardenability: Although forged flanges have relatively poor hardenability, with core hardness usually around 30 HRC, this characteristic determines their unique processing methods and heat treatment processes. Water quenching is needed to improve performance.
Strength and Toughness: Forged flanges must be manufactured using high-temperature forging to ensure sufficient strength and toughness for use under high pressure and high-temperature conditions.
Plasticity: The material should have good plasticity for ease of manufacturing and processing, reducing production costs and improving efficiency.
Corrosion Resistance: For specific applications, such as humid or corrosive environments, the material should have good corrosion resistance for long-term stable operation.
Common Materials: Common forged flange materials include carbon steel, alloy steel, and stainless steel. Material selection depends on the operating environment and performance requirements. For example, carbon steel flanges have good strength and durability, suitable for most general applications, while stainless steel flanges provide excellent corrosion resistance, ideal for humid or corrosive conditions.
The production process of forged flanges directly affects product quality and performance. Key steps include:
Selecting suitable raw materials is the first step in flange production. Typically, carbon steel, alloy steel, or stainless steel is used, depending on the application environment and performance requirements. Incoming materials must undergo strict inspections, including chemical composition analysis, mechanical property testing, and visual inspection, to ensure compliance with standards.
Raw materials are cut into appropriate sizes based on flange specifications. Common cutting methods include sawing, flame cutting, and shearing. Cutting accuracy must be controlled to reduce material waste and ensure blanks meet subsequent forging requirements.
Blanks must be heated to proper forging temperatures. Temperature and duration must be strictly controlled; overheating may damage the material, while underheating may reduce forgeability. Gas, electric, or induction furnaces are typically used to ensure uniform heating.
Forging is the most critical step in flange production and includes open-die and closed-die methods. Open-die forging is suitable for single or small-batch production, while closed-die forging is suitable for large-batch standardized production. Deformation, forging speed, and temperature must be controlled to ensure proper metal flow and mechanical performance.
Post-forging heat treatment improves internal structure and properties. Common heat treatments include normalizing, annealing, quenching, and tempering, which relieve stress, refine grains, increase strength and toughness, and ensure the flange meets use requirements. Heat treatment parameters must be precisely controlled according to material type and flange specifications.
Heat-treated flanges undergo precision machining, including turning, drilling, and milling, to achieve exact dimensions and surface finish, particularly for sealing surfaces. Special fixtures and tools are used to ensure accuracy.
Depending on the environment and customer requirements, flanges may undergo surface treatments such as sandblasting, galvanizing, or painting to improve corrosion resistance and extend service life. Surfaces must be cleaned before treatment to remove oil and scale.
Finished flanges undergo rigorous inspection, including dimensional checks, visual inspection, non-destructive testing (ultrasonic, magnetic particle, or penetrant), and mechanical property testing. Only flanges meeting standards are delivered. Detailed inspection records are maintained to establish a complete quality traceability system.
Flange forging technology is a complex and precise manufacturing process that requires strict material control and precise management of temperature, forging techniques, and multiple other factors. Through open-die and closed-die forging, high-quality flanges can be produced to meet diverse industrial needs. While forged flanges have numerous advantages over cast flanges, challenges exist. By continuously introducing new processes and equipment, such as isothermal forging, the quality and performance of forged flanges can be significantly improved. This article aims to provide a comprehensive understanding of flange forging technology and production processes, offering valuable reference for industrial manufacturing.
