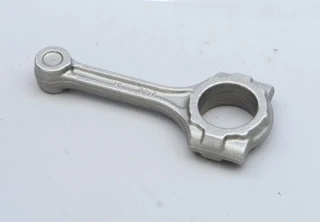

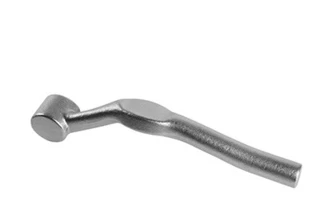

Open die drop forging.Hot forging.Con-rod foging for engines,Tie Rod forging.

Key Specifications / Features

Model No.: Hits: 10

Forging dies are usually made of high-alloy or tool steel. Dies must be impact- and wear-resistant, maintain strength at high temperatures, and have the ability to withstand cycles of rapid heating and cooling. In order to produce a better, more economical die the following standards are maintained. Drop forging is a forging process where a hammer is raised and then "dropped" into the workpiece to deform it according to the shape of the die. There are two types of drop forging: open-die drop forging and impression-die (or closed-die) drop forging. As the names imply, the difference is in the shape of the die, with the former not fully enclosing the workpiece, while the latter does.

Request a quote

Tags:

Next: TS16949,DIN,ASTM ring forging,forged ring.Robot hot forging.Closed die forging.

Previous: ASTM DIN Forged Adjusting arm.Arm forging.Drop forging.Hot die forging.

Detail Information

On this page

Advantages of open-die forging

Open-die forging is also known as smith forging.In open-die forging, a hammer strikes and deforms the workpiece, which is placed on a stationary anvil.Open-die forging gets its name from the fact that the dies (the surfaces that are in contact with the workpiece) do not enclose the workpiece, allowing it to flow except where contacted by the dies. The operator therefore needs to orient and position the workpiece to get the desired shape. The dies are usually flat in shape, but some have a specially shaped surface for specialized operations. For example, a die may have a round, concave, or convex surface or be a tool to form holes or be a cut-off tool.Open-die forgings can be worked into shapes which include discs, hubs, blocks, shafts (including step shafts or with flanges), sleeves, cylinders, flats, hexes, rounds, plate, and some custom shapes. Open-die forging lends itself to short runs and is appropriate for art smithing and custom work. In some cases, open-die forging may be employed to rough-shape ingots to prepare them for subsequent operations. Open-die forging may also orient the grain to increase strength in the required direction.
