In modern industrial production, various manufacturing processes for metal parts continue to emerge, and roll forging, as an advanced plastic forming process, stands out among many methods due to its unique advantages. This article will explore the principles, characteristics, classifications, and practical applications of roll forging, helping readers gain a comprehensive understanding of this efficient, energy-saving, and environmentally friendly manufacturing technology.

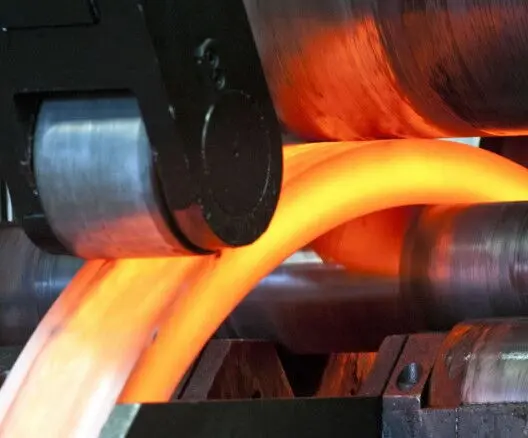

Roll forging, a special form of rotary forging, is a process in which a pair of counter-rotating dies applies pressure to the material, causing plastic deformation to achieve the required forging or billet. Essentially, roll forging is a special form of forming rolling (longitudinal rolling), and its deformation process is a complex three-dimensional deformation. During roll forging, most of the material flows along the length of the billet, increasing its length, while a smaller portion flows laterally, increasing its width. As deformation progresses, the root cross-sectional area of the billet gradually decreases. This unique deformation pattern allows roll forging to perform excellently in processes such as elongating shaft parts, reducing plate blanks, and distributing material along the length, efficiently completing various complex forming tasks.
Compared with traditional die forging, roll forging has many significant technical and economic advantages, making it highly favored in modern industrial production.
During roll forging, due to its unique deformation method and die design, the required equipment load is relatively small. This means that smaller-tonnage equipment can be used to complete the same processing tasks, reducing equipment procurement costs and operating energy consumption. For example, in producing small shaft parts, roll forging can use a smaller roll forging machine, whereas die forging may require higher-tonnage presses, increasing production costs and energy consumption.
The production efficiency of roll forging is extremely high, which is an important reason for its widespread use in industrial production. Because roll forging deforms the billet continuously between a pair of rotating dies, the material can complete the deformation process quickly in the die, greatly shortening the production cycle of a single part. Compared with traditional die forging, roll forging can produce more products per unit time, improving production efficiency and meeting the demands of large-scale production. For example, in producing connecting rods, roll forging enables rapid, continuous production, while die forging requires forging each part individually, with relatively lower production efficiency.
During roll forging, due to precise forming control and smaller machining allowance, material utilization is higher and consumption is relatively low. Compared with die forging, roll forging allows more accurate control of billet deformation, reducing material waste. Additionally, by optimizing die design and process parameters, material utilization can be further improved, lowering production costs. For example, in producing wrenches, roll forging can precisely control billet deformation, improving material utilization and reducing raw material consumption.
Roll forging can produce high-quality products, which is a key factor in its market competitiveness. Because roll forging completes forming through continuous rolling deformation, the internal structure of the product is denser, with refined grains, improving strength and toughness. Roll forging also allows precise control of deformation parameters, ensuring dimensional accuracy and surface quality. For example, in producing high-precision parts such as turbine blades, roll forging can ensure dimensional and surface quality, meeting high-performance requirements.
The working conditions of roll forging are relatively favorable, which is another important reason for its popularity in industrial production. Roll forging equipment is relatively simple, and the production process is smooth, with low vibration and noise, providing a better working environment for operators. Compared with traditional die forging, die forging equipment produces higher vibration and noise during operation, which may harm operators’ health. Roll forging effectively improves labor conditions, reduces work intensity, and enhances safety and comfort.
Roll forging can be classified according to different production needs and processing purposes, mainly into billet preparation forging and shaping forging.
The main purpose of billet preparation forging is to produce billets with the required shape and dimensions for die forging. During this process, the billet undergoes multiple rolling passes, gradually forming a billet close to the final shape. This process requires reasonable design of reduction per pass, lateral spreading, and elongation to ensure uniform deformation and avoid defects. For example, in producing large shaft parts, billet preparation forging gradually elongates the billet to achieve the die forging billet dimensions.
Shaping forging can directly produce forgings that meet shape and dimensional requirements. It requires higher control of die design and process parameters, with precise design of die cavity shapes and dimensions to ensure shape and dimensional accuracy. During shaping forging, the billet undergoes multiple rolling passes in the die to achieve the required forging. For example, in producing twist drill bits and other complex-shaped parts, shaping forging can directly produce forgings that meet specifications through precise die design and process control.
For both billet preparation and shaping forging, process design is critical. Proper process design ensures uniform deformation of the billet, improving product quality and production efficiency. When designing roll forging processes, factors such as roll diameter, die cavity shape and size, billet temperature, and cooling/lubrication conditions must be considered. For example, roll diameter affects the degree of billet deformation and processing efficiency, die cavity shape and size determine forging shape and dimensional accuracy, and billet temperature and cooling/lubrication affect deformation and product quality. Therefore, process parameters must be reasonably selected and optimized according to production needs and processing conditions to achieve the best production results.
Bite is the key to realizing roll forging processing. The billet must be bitten by the roll forging die to initiate the process. In practice, there are two main bite methods: end natural bite and center bite.
End natural bite refers to the billet naturally entering the deformation zone of the roll forging die from its end. In this method, friction between the die and billet is the main driving force, while the pressure component on the billet is the resistance. The bite angle is an important factor affecting bite conditions; increasing the friction coefficient and reducing the bite angle facilitates bite. For end natural bite, the bite angle is generally no more than 25°.
Center bite is achieved by pressing the billet into the deformation zone through protrusions on the roll forging die, forcibly drawing the billet into the zone. Bite in this method is independent of friction, and the bite angle can be larger. The main purpose of center bite is to reduce the number of rolling passes and increase reduction per pass. In center bite, the bite angle generally ranges from 32° to 37°.
In addition to bite methods, deformation rules during roll forging significantly affect product quality and production efficiency. Material flow and deformation in roll forging is a complex three-dimensional process. Forward slip is an important phenomenon in roll forging, where the material speed at the exit exceeds the roll surface speed. Forward slip affects material flow and deformation, so it must be controlled to ensure product quality and dimensional accuracy. Lateral spread is another important phenomenon, referring to material flow in the lateral direction. Factors affecting lateral spread include absolute reduction, roll diameter, original billet width, and friction coefficient. Proper control of these factors ensures the desired lateral spread, maintaining shape and dimensional accuracy.
Currently, commonly used roll forging machines include dual-support, cantilever, and composite types. The dual-support machine is the most widely used, offering high stiffness and the ability to produce high-precision forgings. Roll diameters and forging forces vary to meet different production needs. Cantilever machines have a roll shaft extending on one end, enabling lateral spreading at the cantilever end. Composite machines combine dual-support and cantilever features, enabling both longitudinal rolling and lateral spreading, providing high flexibility.
For large-scale roll forging production, robotic handling is widely used to improve efficiency and reduce labor intensity, achieving automation. Automated roll forging combines dual-support machines with robotic manipulators, realizing fully automated multi-pass forging. Automation improves efficiency, reduces production costs, and enhances product quality and consistency. Domestic production of automated roll forging machines provides strong support for roll forging in China.
As an efficient, energy-saving, and environmentally friendly plastic forming technology, roll forging holds an important position and broad prospects in modern industrial production. This article provides a comprehensive understanding of the definition, principle, characteristics, classification, process design, and practical applications of roll forging.
In summary, roll forging plays a vital role in modern industrial production due to its unique advantages. Whether producing complex components such as connecting rods, twist drill bits, and turbine blades, or simpler parts like wrenches and spikes, roll forging efficiently accomplishes tasks and meets diverse production needs. With continuous technological progress and innovation, roll forging will continue to develop, bringing more breakthroughs and opportunities to industrial manufacturing.
