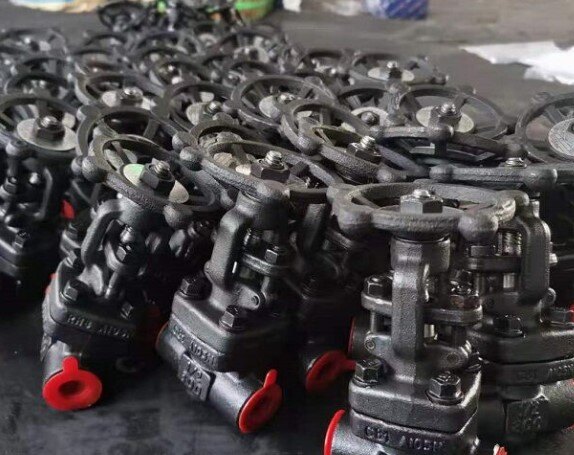

Forged valves are industrial valves manufactured by heating metal and forming it under high pressure. Unlike cast valves, which shape molten metal by pouring it into molds, forged valves use a process of compressing solid metal, resulting in a product that is denser and more durable.
In industries such as oil and gas, power generation, and chemical processing, where performance requirements are extremely high, forged valves are the preferred solution. The core component of every forged valve is the valve body, which houses internal components and withstands the pressure of the pipeline system. Valve bodies are typically made of carbon steel, stainless steel, or alloy steel, and together with the valve stem, bonnet, ball or gate, and sealing elements, constitute a complete valve system.
The key advantage of the forging process is the improvement of the internal grain structure of the metal. When metal is heated to a plastic state and formed under pressure, internal pores are eliminated, and the grain structure is optimized. The final product exhibits excellent mechanical strength, stress resistance, and wear resistance.
Depending on part design, the manufacturing of forged valves mainly employs three processes:
Open Die Forging is suitable for large or structurally simple valve components. Metal is pressed between flat or slightly contoured dies. This method offers high flexibility but produces relatively rough shapes, requiring additional machining to reach final dimensions.
Closed Die Forging presses heated metal into custom dies that match the shape of the final product. This method can produce precise, near-net-shape parts, significantly reducing material waste and is particularly suitable for high-volume production of complex valve components.
Seamless Ring Rolling Forging is specially used for manufacturing high-strength circular components, such as valve seats and flanges. During the process, ring-shaped blanks are rotated and pressed into rings, producing products with excellent structural integrity, pressure resistance, and fatigue performance.
All three methods can produce high-integrity forged valve components according to part size, shape, and application requirements.
The production of forged valves is a multi-stage precision manufacturing process, requiring seven key steps from raw materials to finished products.
The entire process begins with selecting high-quality raw materials. Forged valves typically use carbon steel, stainless steel, or low-alloy steel, which perform excellently under high pressure and high temperature. Raw materials must comply with international standards such as API 602, ASME B16.34, and ISO 9001 to ensure reliability, safety, and regulatory compliance.
After material selection, cutting is performed. Raw materials are cut to design specifications using specialized equipment and tools. The cut parts must undergo preliminary inspection to ensure there are no surface defects or dimensional deviations before proceeding to the next stage.
This is the key step that determines valve performance. The blank is first heated in a gas furnace or induction furnace to 1050°C–1250°C, making the metal plastic without melting.
After heating, the metal is rapidly transferred to a hydraulic or mechanical press. The valve body is formed by closed die forging, or a combination of open die pre-forging and closed die finishing can be used. The forging process not only improves dimensional accuracy but also maintains consistent grain flow, significantly enhancing the valve body’s strength and fatigue resistance.
After forging, the valve enters a controlled heat treatment cycle. Processes such as normalization, quenching, and tempering adjust the material’s hardness, tensile strength, and toughness to meet different application requirements.
Specifically, annealing slowly cools the material to relieve internal stress and improve ductility; quenching uses rapid cooling to increase hardness; tempering reheats quenched material at a lower temperature to reduce brittleness and improve toughness. Temperature, time, and cooling rate must be strictly controlled, as these parameters directly affect the final mechanical properties.
The cooled forgings are then precisely machined on lathes, milling machines, and drills. Machining includes threading, flow path shaping, and sealing surface treatment, ensuring reliable sealing, smooth fluid flow, and proper matching with actuators.
Modern forged valve manufacturing widely uses CNC equipment to ensure machining accuracy and consistency. High-precision machining significantly affects valve performance, so high-quality equipment and tools are essential, along with strict quality control.
Surface treatment further improves corrosion resistance and sealing performance. Common processes include grinding, polishing, nitriding, quenching, and plating. Depending on the operating environment, coatings such as epoxy resin, zinc phosphate, or PTFE may be applied.
For marine or offshore oil and gas operations, anti-corrosion coatings are especially important. Proper surface treatment can extend valve service life by several years, greatly reducing maintenance costs and downtime risks.
During assembly, all components are precisely installed to ensure the valve meets operational requirements. After assembly, comprehensive testing is conducted, including stem torque and seat leakage tests.
Quality control runs throughout the process. Non-destructive testing methods such as ultrasonic testing, magnetic particle testing, and radiography, combined with hydraulic tests and coordinate measurement (CMM), ensure each component meets performance and safety standards.
Finished valves must be clearly marked, including model, pressure rating, material, and standard compliance, and meet specific customer requirements. Once marked, valves are professionally packaged and prepared for shipment.
As a forging parts supplier, valve bodies are critical components in oil and gas, automotive, and manufacturing industries, controlling fluid and gas flow. Material selection is therefore crucial.
Stainless Steel is commonly used for valve bodies exposed to high temperatures, chemically aggressive environments, or marine conditions due to its excellent corrosion resistance, high strength, and durability. Stainless steel valve bodies maintain stable performance in harsh conditions and are the preferred choice for high-end applications.
Carbon Steel offers high strength at lower cost, suitable for industrial and automotive applications with less stringent corrosion requirements. Carbon steel valve bodies may require additional surface treatment to enhance rust resistance but perform well in dry or controlled environments.
Aluminum features lightweight, corrosion resistance, and high thermal conductivity, suitable for aerospace and automotive applications where weight reduction is critical. Anodizing further improves corrosion resistance and appearance.
Valve body design during forging must consider multiple factors:
- Complexity of Shape: Directly affects the choice of manufacturing process. Complex shapes may require advanced forging processes and dies, increasing production costs; simple shapes may use economical open die forging.
- Dimensions: Determine material usage and equipment requirements. Large valve bodies require more material and higher forging force; small valve bodies require more precise forging processes to meet dimensional tolerances.
- Wall Thickness: Affects consistency of mechanical performance. Uniform thickness ensures consistent properties and avoids stress concentration, while variable thickness may be used to meet specific functional requirements.
- Fluid Dynamics: Proper internal flow path design ensures smooth fluid flow and minimal pressure loss, improving overall system efficiency.
Quality control is implemented throughout the forged valve production process. From raw material intake to finished products, strict measures are enforced at every stage:
- Raw Material Inspection: Includes chemical composition analysis, mechanical performance testing, and surface quality checks to ensure standard compliance.
- Process Monitoring: Covers heating, forming, and cooling stages to ensure stable and controllable process parameters.
- Final Inspection: Uses multiple methods to verify product quality. Non-destructive testing (ultrasonic, magnetic particle, radiography) detects internal defects; destructive tests (tensile, hardness) verify mechanical properties; dimensional checks ensure geometric accuracy.
Choosing suppliers with a complete quality control system is essential to ensure the reliability of forged valves.
Compared with cast valves and other manufacturing methods, forged valves have several significant advantages:
- Excellent Mechanical Strength: Dense grain structure and pore-free material allow forged valves to withstand higher operating pressures and impact loads, performing reliably under harsh conditions.
- Outstanding Corrosion and Erosion Resistance: Increased material density reduces pathways for corrosive media.
- High Dimensional Accuracy: Closed die forging produces near-net-shape components, reducing assembly issues and leakage risk.
Long-Term Reliability: Forged valves are the standard choice in critical applications where failure is not tolerated, such as nuclear power plants and deep-sea oil and gas extraction.
Based on these advantages, forged valves are widely used in high-risk industries:
- Oil & Gas: Control wells, pipelines, and refining equipment where high pressure, high temperature, and corrosive media demand excellent valve performance.
- Power Generation: Used in thermal, nuclear, and renewable energy plants to ensure safe control of steam, coolants, and other working media.
- Chemical Industry: Handle various corrosive chemicals and high-temperature reaction media.
- Marine and Offshore Engineering: Stainless steel forged valves with specialized coatings resist seawater corrosion and extreme weather.
The forged valve manufacturing process is complex yet mature. From raw material selection, heating and forging, heat treatment, precision machining, to final inspection, every stage directly affects performance and reliability.
Understanding this process helps buyers choose the right supplier, engineers correctly specify valve requirements, and industry practitioners gain deeper insight into this critical industrial component. When selecting forged valves, attention should be paid to supplier certifications (API, ASME, ISO), quality control capability, and industry experience. High-quality forged valves may have higher initial costs, but their extended service life and reduced maintenance result in better economic benefits and enhanced safety.
