Nickel-based alloys are widely recognized in modern industry for their exceptional mechanical properties, corrosion resistance, and high-temperature performance. These materials have become indispensable in sectors ranging from aerospace and automotive to energy and defense. From high-performance turbine blades in aircraft engines to critical components in petrochemical plants and nuclear reactors, nickel-based alloys are often the material of choice when reliability under extreme conditions is paramount.
Among the various manufacturing techniques, open die forging stands out as a versatile and efficient method for producing high-quality nickel-based alloy components. This process allows for precise control over material structure, mechanical properties, and component geometry, making it particularly suitable for complex parts that require superior performance. This article provides a comprehensive analysis of the open die forging process for nickel-based alloys, including detailed process steps, potential defects and mitigation strategies, and an overview of their diverse applications.
Open die forging of nickel-based alloys is a highly controlled and sophisticated process. It encompasses several critical stages, each of which directly affects the final properties and performance of the forged component. The following sections describe the process in detail.
The success of open die forging begins with selecting high-quality raw materials. Common nickel-based alloys include Inconel 617, GH4169, and other high-performance superalloys. These materials contain precise combinations of nickel, chromium, cobalt, iron, and trace elements, providing excellent high-temperature strength, oxidation resistance, and mechanical stability.
Quality control is paramount at the procurement stage. Raw materials must meet strict chemical composition requirements to ensure consistent performance throughout the forging process.
Pre-treatment of raw materials is equally important. Heat treatment is a key step to relieve internal stresses introduced during previous processing or storage. If these stresses remain, they can lead to cracks or other defects during forging, compromising the structural integrity of the component. Preheated and stress-relieved materials exhibit improved forgeability, making them easier to deform uniformly under high forces.
Melting is the first step in converting raw materials into a workable state. Common methods include electric arc furnaces and induction furnaces, which allow precise control over temperature and atmosphere. Accurate temperature control ensures all alloying elements are fully melted and uniformly distributed, while a carefully controlled atmosphere prevents oxidation or contamination of the molten metal.
After melting, chemical composition analysis is essential to verify that the alloy matches design specifications. Advanced spectroscopic and analytical techniques are typically employed to detect any deviation in elemental content. Should discrepancies arise, corrective measures must be taken immediately to avoid producing substandard forged parts.
Next, the molten metal is cast into molds designed according to the intended shape and size of the forging. Mold material selection is critical: it must withstand high temperatures and resist corrosion. Preheating the molds reduces thermal shock to the molten metal, preventing defects such as gas porosity or shrinkage cavities. Controlled pouring rates ensure uniform filling of the mold cavity, minimizing turbulence and reducing the likelihood of internal defects.
Pre-forge heating is a vital step in ensuring the material can be deformed effectively without cracking. Nickel-based alloys are typically heated to 800–1300°C, a range that optimizes plasticity while minimizing the risk of grain growth.
Temperature uniformity during preheating is critical. Uneven heating can create localized thermal stress, leading to cracking during subsequent forging. Modern preheating furnaces employ controlled heating zones and precise temperature monitoring to ensure uniformity across the entire component. The duration of heating must also be carefully managed: insufficient heating may leave the metal too stiff to forge, while excessive heating can promote grain coarsening and reduce mechanical properties.

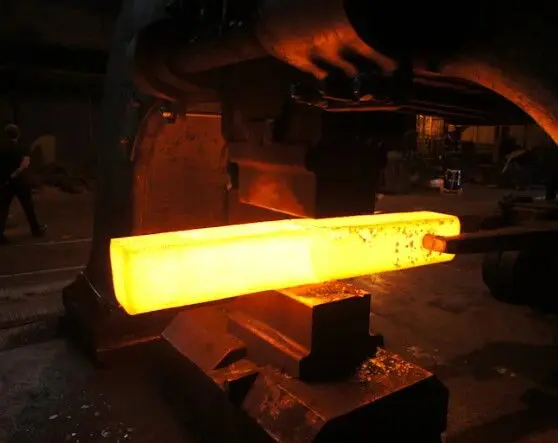

With preheated material, the forging stage begins. Forging hammers or hydraulic presses apply high compressive forces, shaping the component while refining its internal microstructure. Proper forging parameters, including deformation rate, temperature, and sequence, are essential to avoid defects.
Deformation Rate Control: Ensures uniform plastic deformation, preventing localized overstressing that can cause cracks or under-deformation that results in inaccurate geometry.
Temperature Control: Maintains material plasticity, reduces energy consumption, and improves process efficiency.
Open die forging also improves the mechanical properties of the alloy. Grain flow is aligned along the direction of applied stress, enhancing fatigue resistance, toughness, and high-temperature strength. The careful design of forging dies further enables near-net shape production, reducing the need for excessive machining and material waste.
Post-forging heat treatment is critical for achieving the desired mechanical properties. Annealing is performed to relieve residual stresses resulting from non-uniform deformation and thermal gradients during forging. Residual stress, if left unchecked, can lead to warping, cracking, or reduced fatigue life.
Other heat treatment processes include solution treatment and aging:
Solution Treatment: Heats the forging to 1200–1300°C to dissolve alloying elements into a uniform solid solution, followed by rapid quenching.
Aging: Performed at lower temperatures to promote controlled precipitation, enhancing strength and hardness.
These treatments refine the microstructure, producing fine, uniform grains that improve mechanical performance and corrosion resistance. Correctly applied, heat treatment ensures the component meets or exceeds performance requirements under demanding operational conditions.
After heat treatment, forged parts undergo precision machining such as turning, milling, and grinding to achieve required dimensional tolerances and surface finish.
Comprehensive quality inspections include:
Dimensional Checks: High-precision instruments ensure compliance with design specifications.
Surface Inspection: Detects scratches, cracks, and other defects that may act as stress concentrators.
Microstructural Analysis: Metallographic examination identifies grain size, uniformity, and internal anomalies.
Non-Destructive Testing (NDT): Ultrasonic and X-ray inspections reveal internal cracks, voids, or porosity.
Through meticulous inspection, manufacturers guarantee that forged components meet the highest standards for internal integrity, surface quality, and dimensional accuracy.
Despite careful control, nickel-based alloy forging may encounter defects due to material characteristics and process complexity. Understanding these defects and implementing mitigation strategies is crucial.
Surface Cracks: Surface cracks arise from improper temperature control, rapid cooling, or impurities in raw materials. Preventive measures include precise temperature management, optimized cooling rates, and careful selection and preparation of raw materials.
Internal Cracks: Internal cracks are caused by localized stress concentrations during deformation. Mitigation involves controlling deformation rates, using suitable die designs, and applying proper lubrication to distribute stress evenly.
Porosity and Looseness: Porosity results from trapped gases or inclusions, while looseness is caused by inadequate deformation. High-purity raw materials, controlled melting and forging parameters, and die venting optimization are key to prevention.
Grain Growth: Excessive temperatures or prolonged holding times can lead to abnormal grain growth, reducing strength and toughness. Precise control of forging and heat treatment parameters minimizes this risk.
Inclusions: Non-metallic or metallic inclusions compromise material continuity and performance. Careful material selection, refining during melting, and controlled forging deformation help reduce inclusion impact.
Residual Stress: Rapid cooling or uneven deformation can generate residual stress, leading to warping or cracking. Controlled cooling, uniform deformation, and optimized die design are essential to minimize residual stress.
Nickel-based alloy forgings are prized for their ability to meet demanding performance requirements in critical applications.
Aerospace: Turbine blades, landing gear, engine mounts, and structural connectors require high temperature strength, fatigue resistance, and toughness. Nickel-based forgings ensure engine reliability, flight safety, and fuel efficiency.
Automotive: Engine components (crankshafts, connecting rods, piston pins) and drivetrain/suspension parts demand high strength, wear resistance, and toughness, enhancing vehicle performance and longevity.
Energy: Components in turbines, generators, and petrochemical plants operate under high temperature, pressure, and corrosive environments. Nickel-based forgings improve efficiency, extend service life, and reduce maintenance costs.
Defense, Machinery & Civil Engineering: Military equipment, pumps, valves, compressors, bridge structures, and railway parts benefit from the exceptional strength, toughness, and corrosion resistance of nickel-based forgings. Tooling and molds also achieve longer life and higher wear resistance.
Open die forging of nickel-based alloys is a critical process in modern manufacturing. From material selection and pre-treatment to forging, heat treatment, and final inspection, every step requires careful control to ensure component quality. While defects may occur, optimized process parameters and advanced control strategies effectively mitigate them. The combination of nickel-based alloy properties and open die forging flexibility enables the production of components with exceptional mechanical performance, corrosion resistance, and reliability. These components play vital roles across aerospace, automotive, energy, defense, and other industrial sectors, providing the foundation for advanced technologies and modern industrial development.
